How to Choose a deburring machine for small metal parts — select by burr size and process
Oct 24 ,2025
Of course. Choosing a deburring machine based on burr size and the desired process is an excellent, methodical approach. It moves away from a “one-size-fits-all” mentality to a precision-based selection.
Here is a comprehensive guide on how to choose a deburring machine for small parts, using burr size and process as your primary selectors.
The Two-Step Selection Framework
Follow these two steps in order:
-
Analyze Your Burr: Quantify the size and location of the burr.
-
Map the Burr to the Process: Match the burr characteristics to the most effective and efficient deburring technology.
Step 1: Analyze Your Burr & Part
Before looking at any machines, you must first understand what you’re removing.
| Burr Characteristic | Questions to Ask | Why It Matters |
|---|---|---|
| Size (Volume) | Is it a fine, feathery “micro-burr” or a large, tough “flash”? | This is your primary driver. Large burrs need aggressive methods; small burrs need fine, precise ones. |
| Location | Is it on an external edge, an internal cross-hole, or a hard-to-reach channel? | Determines if the tool/media can physically access and remove the burr. |
| Material | What is the part made of (Aluminum, Steel, Titanium, Plastic)? What is the burr’s hardness? | Softer materials (Al, Brass, Plastic) are easily damaged. Hard materials require more aggressive methods. |
| Part Geometry | Are there sharp corners that must be maintained? Are the edges supposed to be sharp or rounded? | Some processes naturally radius edges; others can preserve sharp corners. |
| Consistency | Are the burrs consistent in size and location from part to part? | Inconsistent burrs may require a more flexible or manual process. |
Step 2: Select the Process & Machine by Burr Size
Use the following flowchart and table to match your burr to the best process.

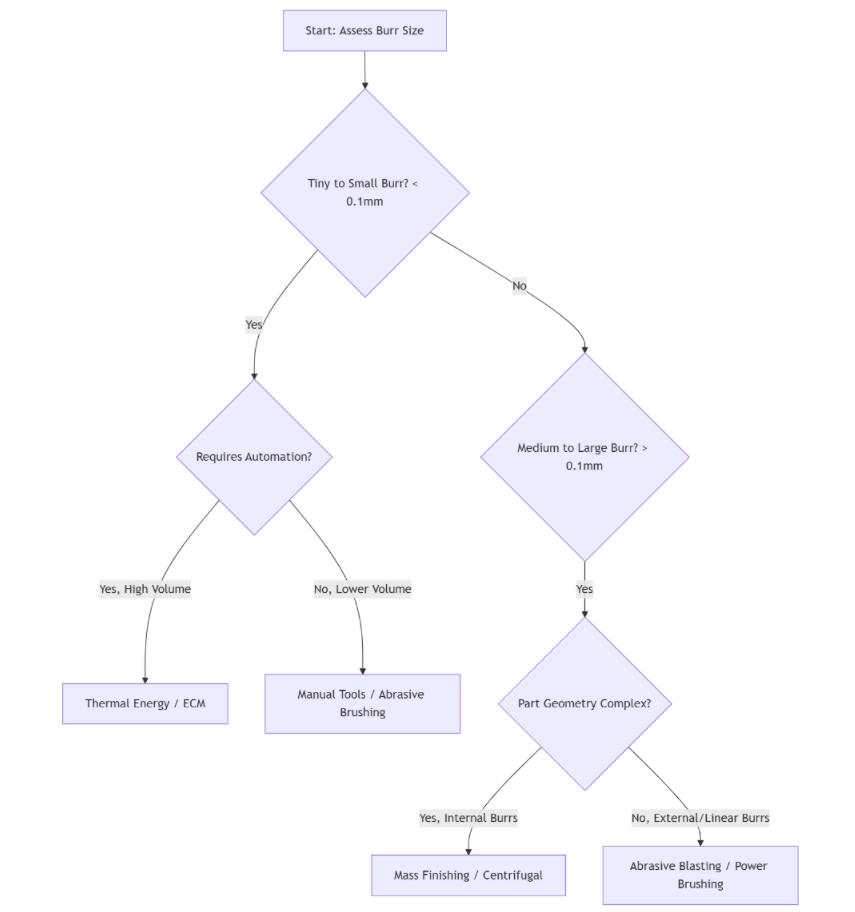

Deburring Technology Selection Flowchart
Detailed Process Breakdown by Burr Size
Category 1: For Tiny to Small Burrs (Micro-burrs up to ~0.1mm / 0.004″)
These are often the result of fine machining operations like milling, turning, or drilling.
| Process | How It Works | Best For Burrs On… | Ideal Part Type | Machine Examples |
|---|---|---|---|---|
| Abrasive Brushing | Rotating nylon filaments impregnated with abrasive (silicon carbide, aluminum oxide) scrub edges. | External edges, flat surfaces, contours. Not for deep internal holes. | Small metal parts, machined components. Good for maintaining specific edge geometry. | Bench-top Motor Units with flexible brush heads. |
| Manual Deburring Tools | Hand-held tools (scrapers, files, abrasive cords) used by an operator. | Any location, especially for prototyping, low volume, or hard-to-reach spots. | All materials. Low initial cost, high labor cost. | Deburring knives, Hand Files, Abrasive Cords/Tapes. |
| Thermal Energy Method (TEM) | A controlled gas explosion in a chamber instantly vaporizes burrs (they have high surface area). | All edges, simultaneously. Excellent for internal cross-holes and complex networks. | Complex small parts with internal passages (fuel injectors, medical implants). High equipment cost. | SurfTran TEM Machines, TurboFinish TFE. |
| Electrochemical (ECM) | An electrolyte and electrical current dissolve the burr away without contact. | Specific, targeted edges. A tool (cathode) is shaped to the edge to be deburred. | Electrically conductive materials. Excellent for hard metals and for leaving no residual stress. | EMAG ECM Deburring Machines. |
Category 2: For Medium to Large Burrs (0.1mm – 1mm+ / Flash)
These are often from casting, stamping, or plasma cutting.
| Process | How It Works | Best For Burrs On… | Ideal Part Type | Machine Examples |
|---|---|---|---|---|
| Vibratory Finishing | Parts and media (abrasive chips) are placed in a bowl and vibrated to create a sliding motion. | All accessible edges. Good for general edge breaking and surface finishing. | High volumes of small, durable parts. Can process many parts at once. | Round Bowl Vibrators, Through-Feed Vibratory Systems. |
| Centrifugal Barrel (High-Energy) | Parts and media are placed in barrels that rotate at high speed, creating high G-forces and rapid cutting action. | All edges. Much faster and more precise than standard vibratory. | Delicate parts that still need aggressive burr removal (e.g., zinc die-castings, medical instruments). | Rösler R-Series, Almco HED Series. |
| Abrasive Blasting (Bead Blasting) | Small abrasive media (glass beads, plastic, walnut) is propelled at the part surface using air or a wheel. | External surfaces and simple geometries. Can reach some internal areas with directed nozzle. | Removing large burrs from stampings or castings. Can mar soft surfaces. | Cabinet Blasters, Suction Blast Cabinets. |
| Power Brushing (Wire Brushes) | Motor-driven brushes with steel, brass, or nylon bristles cut away large burrs. | Linear edges, flat surfaces, welds. Aggressive and fast. | Metal stampings, cut sheets, structural parts. Can be too aggressive for delicate parts. | Bench Grinders with brush attachments, Automated Brush Deburring Cells. |
Key Considerations Beyond Burr Size
While burr size is the starting point, these factors will finalize your decision:
-
Part Material:
-
Soft (Aluminum, Brass, Plastic): Avoid aggressive processes like heavy vibratory or wire brushing that can cause nicking or embedding. Use abrasive brushing, manual tools, or gentle media.
-
Hard (Steel, Titanium): You can use more aggressive processes like centrifugal barrel or power brushing. ECM is excellent for hard metals as it doesn’t create tool wear.
-
-
Production Volume & Automation:
-
Low Volume/Prototype: Manual tools, bench-top brushes, or a small vibratory bowl.
-
High Volume/Production Line: Automated systems like through-feed vibratory, centrifugal disk, robotic brushing/blasting, or TEM.
-
-
Final Surface Finish Requirement:
-
Do you need a matte, satin, or bright finish? Processes like vibratory and centrifugal finishing will improve the surface finish while they deburr. Blasting will change the surface texture.
-
-
Critical Edge Requirements:
-
Must Maintain Sharp Corner: Thermal (TEM) and Electrochemical (ECM) are best, as they remove material without contact. Abrasive methods will always create a small radius.
-
Controlled Radius Required: Vibratory, centrifugal, and brushing are perfect for creating a consistent, repeatable break on all edges.
-
Summary & Final Recommendation
For Small Parts, follow this simple decision path:
-
Measure your burr. Is it small and fine, or large and bulky?
-
For Micro-Burrs: Start by investigating Abrasive Brushing. If you have complex internals and high volume, Thermal (TEM) is the ultimate (but expensive) solution.
-
For Medium/Large Burrs: Start by investigating Vibratory or Centrifugal Finishing. These are the most common and cost-effective solutions for high-volume small parts deburring.
-
Always run a test. Any reputable machine supplier will offer to run a sample batch of your parts to prove the process and determine cycle times. This is the most crucial step in your selection process.
By systematically evaluating your burr and matching it to the physics of the deburring process, you can confidently select a machine that will be efficient, cost-effective, and produce the high-quality results you need.
