Laser Etching Machine – Stainless Steel Elevator Car Etching Machine – Large Format Metal Material Laser Etching Machine

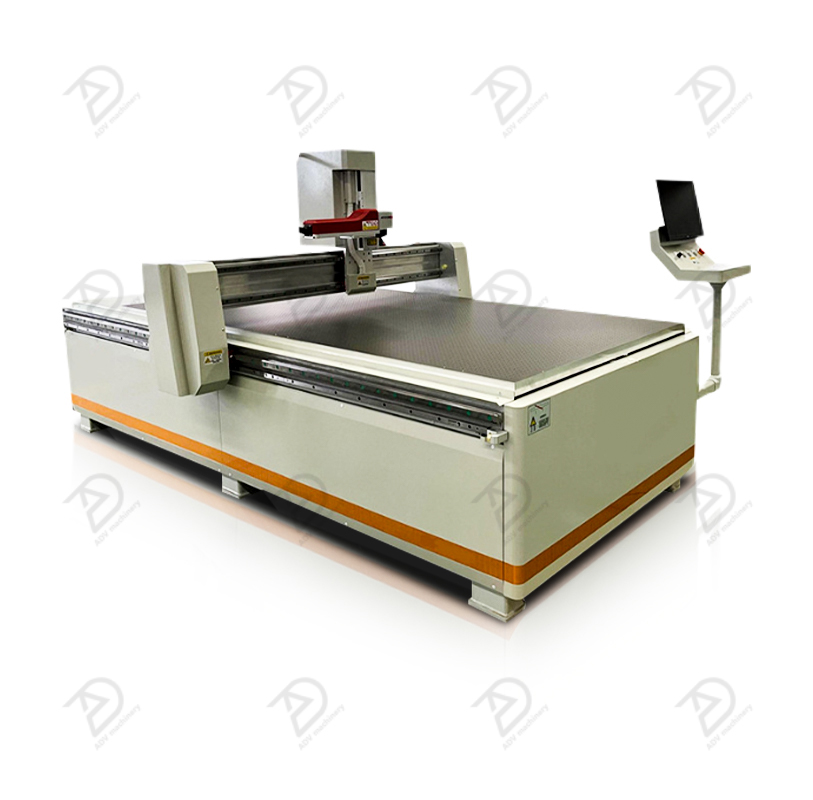

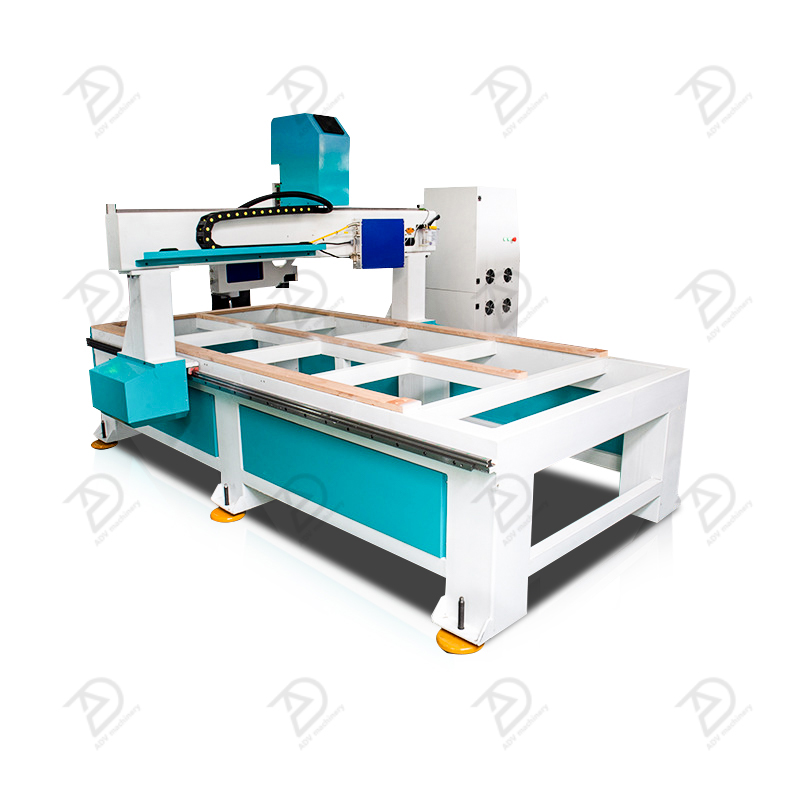

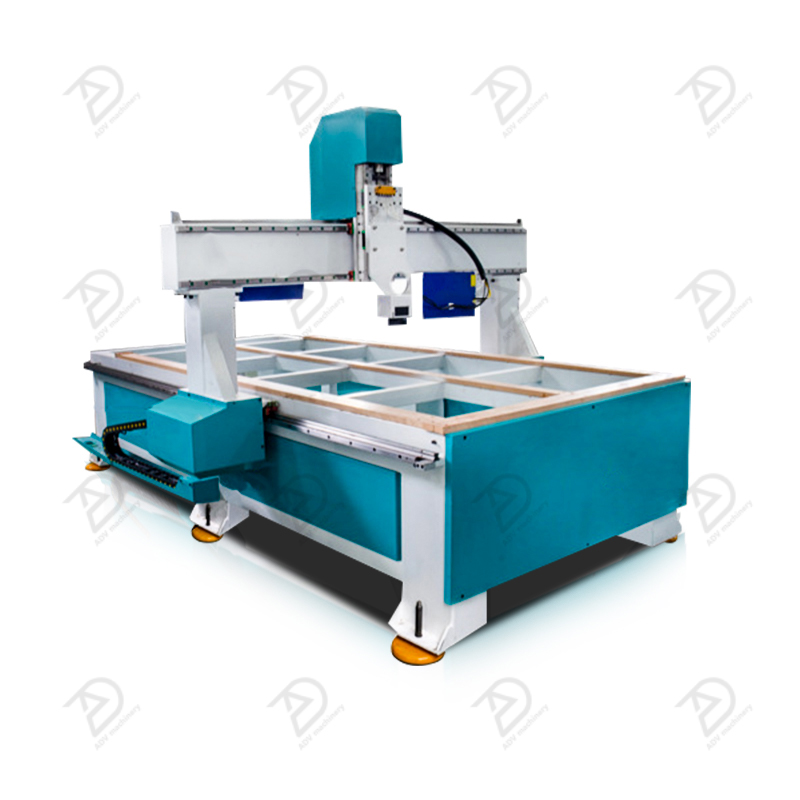

Product Description

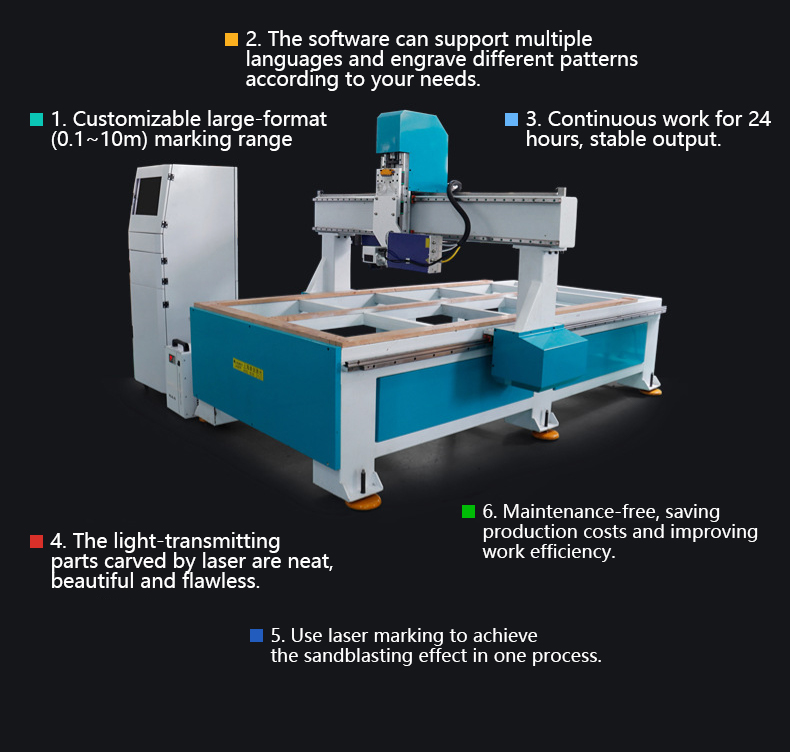

Working area can be customized according to customer requirements.
- Aluminum alloy vacuum adsorption platform: high flatness (within 2 mm), high strength, high rigidity, anti-bending and anti-torsion, large and uniform adsorption force.
Complete machine cable: passed the bending fatigue test of millions of times, ensuring that it is not easy to break in long-term repeated operation, and maintains good condition in high temperature and severe cold environment. - Core software and system: MYG multi-axis motion control, solves the problem of small-format long-line splicing. Laser energy control: solves the problem of corners and starting points with excessive energy and burning
- The integrated motion control, galvanometer control, and laser control system are highly integrated. It provides a complete solution, which is easy to operate and the product is fine without sawtooth or ripples, and the wheel is clear.
Machine Parameters
Large Format Metal Material Laser Etching Machine Detailed Description :
| Model | LK-SS10A | LK-SS20P |
| Laser | 100W | 200W |
| Size | 1300*2500mm | 1500*3000mm |
| Speed | 0-12000mm/s | 0-12000mm/s |
| Material Thickness | 0.5-80mm | 0.5-80mm |
| Working precision | 0.1mm | 0.1mm |
| Pattern Form | DXF/PLT/BMP/EPS/TIF/DWG | DXF/PLT/BMP/EPS/TIF/DWG |
| Working Platform | Vaccum Pump | Vaccum Pump |
| Electric Supply | 220V/50HZ | 220V/50HZ |

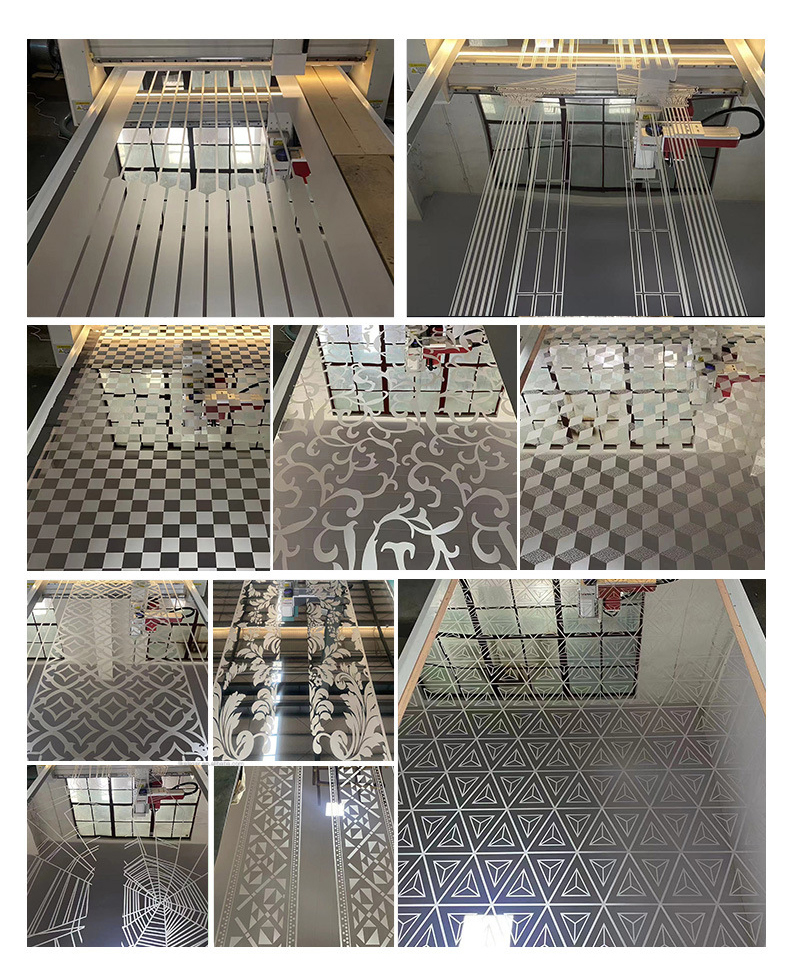

Application industry and sample

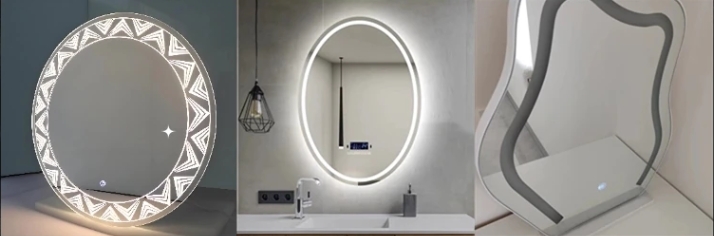

Laser Etching Machine Used in elevator decorative engraving,mirror etching.
High-quality beam quality can achieve very fine and accurate operation, the working state is relatively stable and reliable, and can work continuously for a long time
High-precision positioning can accurately control the beam point and maintain stable performance during long-term work.
This control system is independently developed and is different from the traditional marking machine system. The free design supports multiple formats for various graphics to be processed.
More Info
- Laser 100W/200W
- Machine table Vacuum adsorption
- Band 1064TS
- Machine weight 1200KG heavy machine tool (double tempering)
- X/positioning accuracy ±0.03mm
- Gantry Aviation aluminum for aircraft
- XN repeat positioning accuracy ±0.02mm
- Transmission mode YCC private service motor (imported from Japan)
